Top-Running Single-Girder Crane

Commercial planning estimate, not an approved structural design or binding offer. Overall width is the pricing basis, not a confirmed rail-center span; overall height is not hook height. Final floor/site approval, capacity and supplier drawings are required.

Online: $95,900.00 USD / Comparison/list: $115,080.00

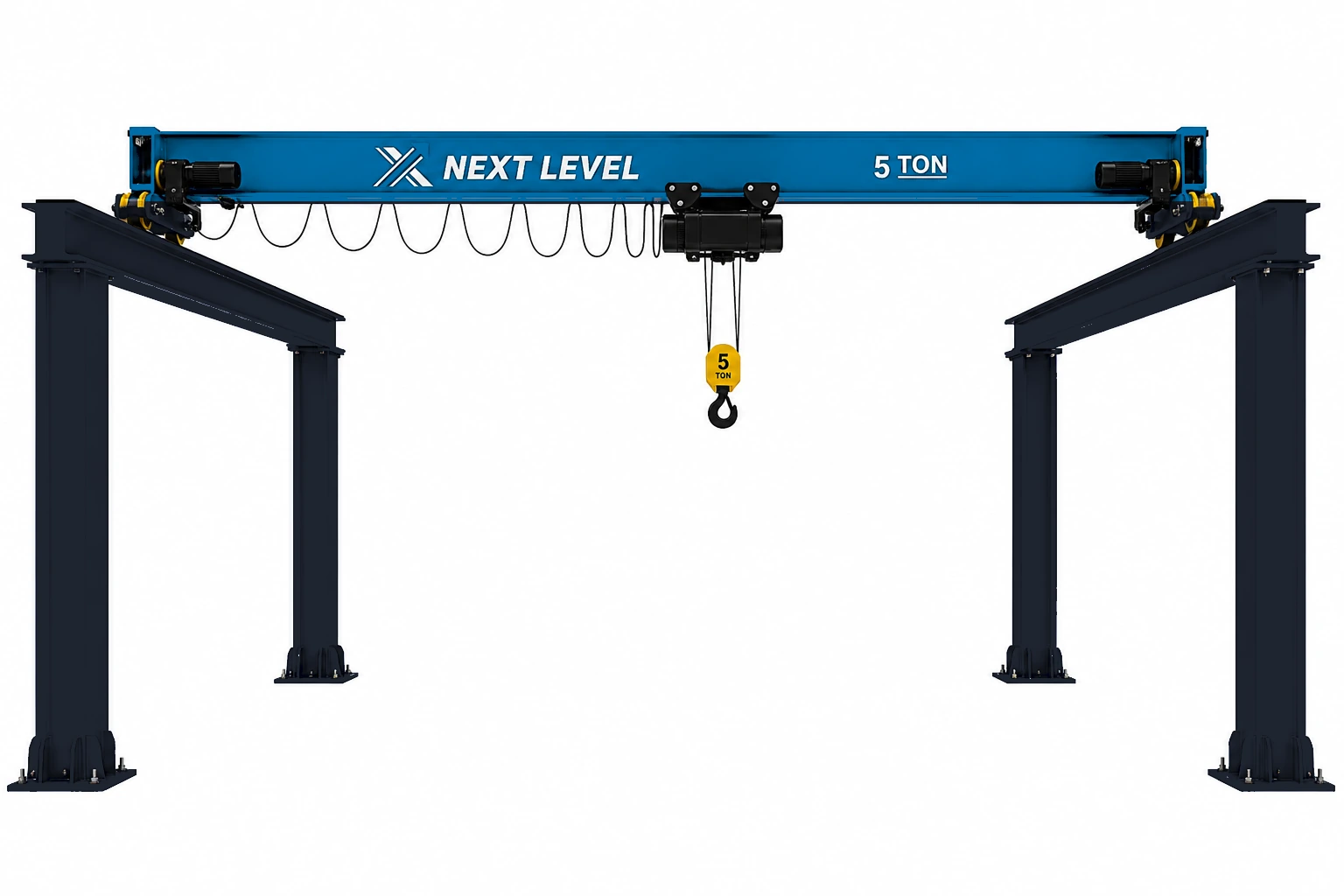

Freestanding top-running color visualization: RAL 5017 bridge; RAL 5004 columns and runways. Screen colors are approximate. The illustrated 5-ton system is a reference, not the quoted rating or final engineering.
Freestanding top-running color visualization: RAL 5017 bridge; RAL 5004 columns and runways. Screen colors are approximate. The illustrated 5-ton system is a reference, not the quoted rating or final engineering.

Specifications

ConfigurationOverall Width: 50 ft
ConfigurationOverall Length: 90 ft
ConfigurationOverall Height: 18 ft
ConfigurationCapacity: 1 US tons (2,000 lb per ton) / 2,000 lb
ConfigurationNumber of Bridges: 1
ConfigurationBridge Travel: Motorized
ConfigurationTrolley Travel: Motorized
ConfigurationHoist Type: Electric chain x 1
ConfigurationColumn bays (center-to-center): 28 ft 8 in / 28 ft 8 in / 28 ft 8 in
ConfigurationColumn pairs: 4 (8 columns)
ConfigurationStart / end overhang: 1 ft 6 in / 2 ft 6 in
ConfigurationRunway beam sections, per side: 32 ft 8 in / 28 ft 8 in / 28 ft 8 in

Installation, delivery and installer flights, hotels, meals/expenses and rental car are included in the stated base scope. Delivery coverage requires confirmation. Customer pays scissor lift and forklift rentals. Tax and unrelated site work are separate.
